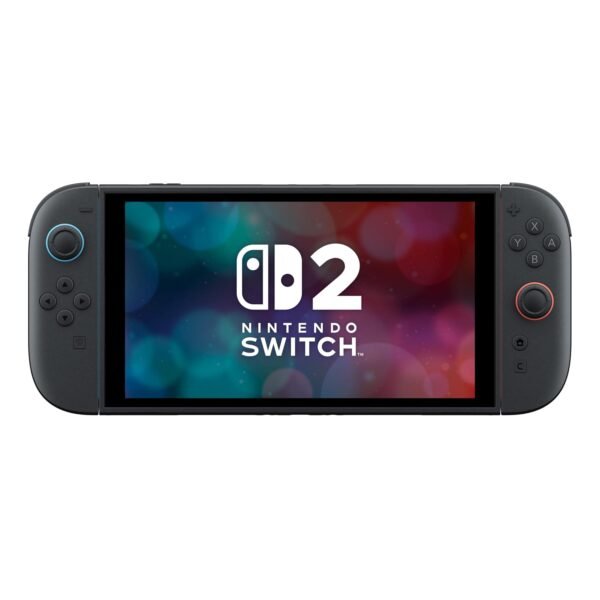

Approximately 4.5 inches tall x 10.7 inches wide x .55 inches thick (with Joy-Con™ 2 controllers attached).
*The maximum thickness from the tip of the control sticks to the protruding parts of the ZL/ZR buttons is 1.2 inches.

Approximately .88 lbs
(Approximately 1.18 lbs with Joy-Con 2 controllers attached)

Capacitive touch screen
7.9-inch wide color gamut LCD screen
1920×1080 pixels
HDR10 support
VRR up to 120 Hz

Custom processor made by NVIDIA.

256 GB (UFS)
*A portion of the storage is reserved for use by the system.

Wireless LAN (Wi-Fi 6)
Bluetooth
In TV mode, Nintendo Switch 2 can be connected using the wired LAN port on the dock.

Output via HDMI connector in TV mode
Maximum of 3840×2160 (4K) resolution at 60 fps (TV mode)
Supports 120 fps when 1920×1080/2560×1440 resolutions are selected
Supports HDR10
*Maximum 1920×1080 resolution in tabletop mode and handheld mode, following screen resolution.

Supports linear PCM output 5.1ch
Output via HDMI connector in TV mode
*Surround sound effect can be applied when outputting to headphones or to the built-in speaker (surround sound effect when outputting to the built-in speaker requires a system update).

Stereo
The independent enclosure structure provides natural, clear sound quality.

Built-in microphone (monaural)
Noise cancellation, echo cancellation, and auto gain control provide a more comfortable voice chat experience.

POWER Button/Volume buttons

2 USB-C® connectors
The port on the bottom is used to charge the console and connect to the Nintendo Switch 2 dock. The port on the top is used to connect accessories and/or charge the console.

3.5mm 4-contact stereo mini-plug (CTIA standard)
Please note: Nintendo cannot guarantee functionality with all products.

Both Nintendo Switch 2 and Nintendo Switch game cards can be inserted.

Compatible with microSD Express cards only (up to 2 TB)
*microSD memory cards that are not compatible with microSD Express can only be used to copy screenshots and videos from Nintendo Switch.

Accelerometer, gyroscope, and mouse sensor located in Joy-Con 2 controllers
Brightness sensor located in console

41-95 degrees F / 20-80% humidity

Lithium-ion battery/5220mAh

Approx. 2 – 6.5 hours
*These are rough estimates. The battery life will depend on the games you play.

Approximately 3 hours
*While the system is in Sleep mode.

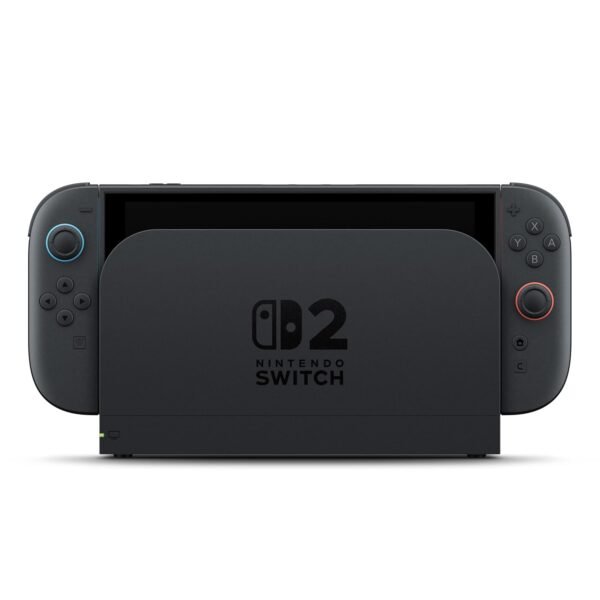

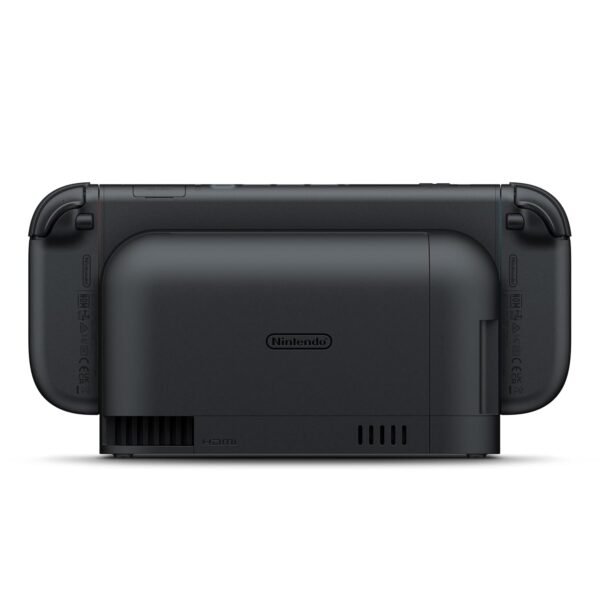

Approximately 4.5 inches tall x 7.9 inches wide x 2 inches thick
The height includes the .08 inches added by the feet on the bottom of the dock.

Approximately .84 lbs

2 USB Ports (USB 2.0 compatible) on the side
System connector
AC adapter port
HDMI port
LAN port

Approximately 4.57 inches tall x .56 inches wide x 1.2 inches thick
*The maximum thickness from the tip of the control sticks to the protruding parts of the ZL/ZR buttons is 1.2 inches.

Joy-Con 2 [L]
2.3 oz

Joy-Con 2 [R]
2.4 oz

Joy-Con 2 [L]
Left Stick (pressable)
Up/Down/Left/Right/L/ZL/SL/SR/- Buttons
Capture Button
Release Button
Sync Button

Joy-Con 2 [R]
Right Stick (pressable)
A/B/X/Y/R/ZR/SL/SR/+ Buttons
HOME Button
C Button
Release Button
Sync Button

Joy-Con 2 [L]
Bluetooth

Joy-Con 2 [R]
Bluetooth/NFC

Joy-Con 2 [L]
Accelorometer
Gyroscope
Mouse sensor

Joy-Con 2 [R]
Accelorometer
Gyroscope
Mouse sensor

HD rumble 2

Lithium ion battery / battery capacity 500mAh

Approximately 20 hours
*Battery life may vary depending on the usage.

Approximately 3 hours 30 minutes
*Joy-Con controllers are charged when attached to the system or Joy-Con 2 charging grip.
